Point Machine Health Monitoring Unit


Point Machine Health Monitoring Unit (PHMU) reduces maintenance cost and improves availability by enabling predictive maintenance through Remote Condition Monitoring

Point-Machine-Health-Monitoring-Unit-installation-count
Point-Machine-Health-Monitoring-Unit

FEATURES


  • Non-invasive method for measuring current.
  • Online Point machine operating current and voltage – graphical representation
  • Online alarms for faults
    • Initial High Peak current

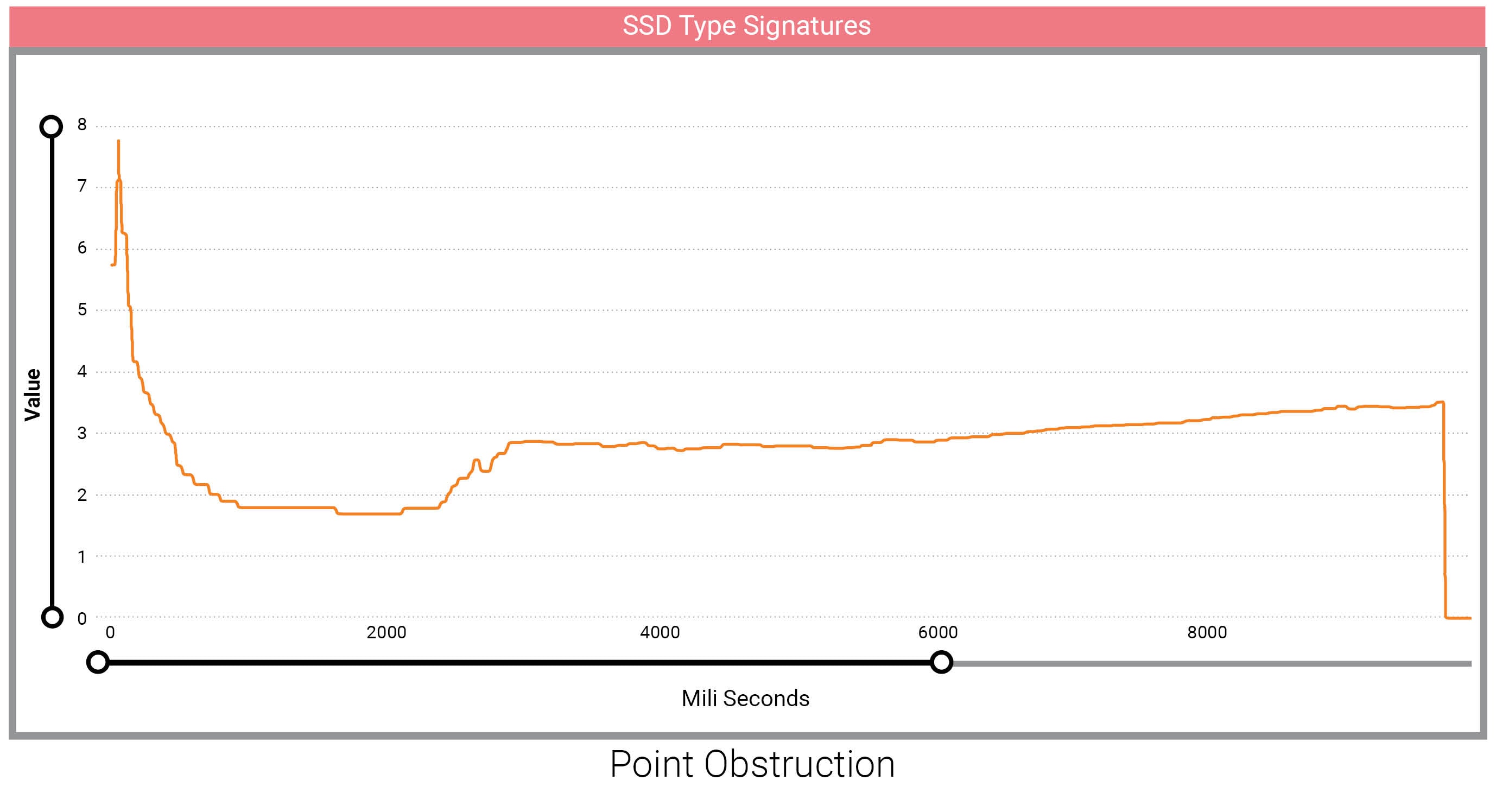

    • Obstruction at Point
    • Friction clutch problem
    • Carbon brush worn out
    • Overload protection timer is less
    • Point operated detection failed
    • Point machine not operated – Point failed
  • Identification of abnormal current signature by superimposing historical data

REPORTS


pthmu-current-signature-graph

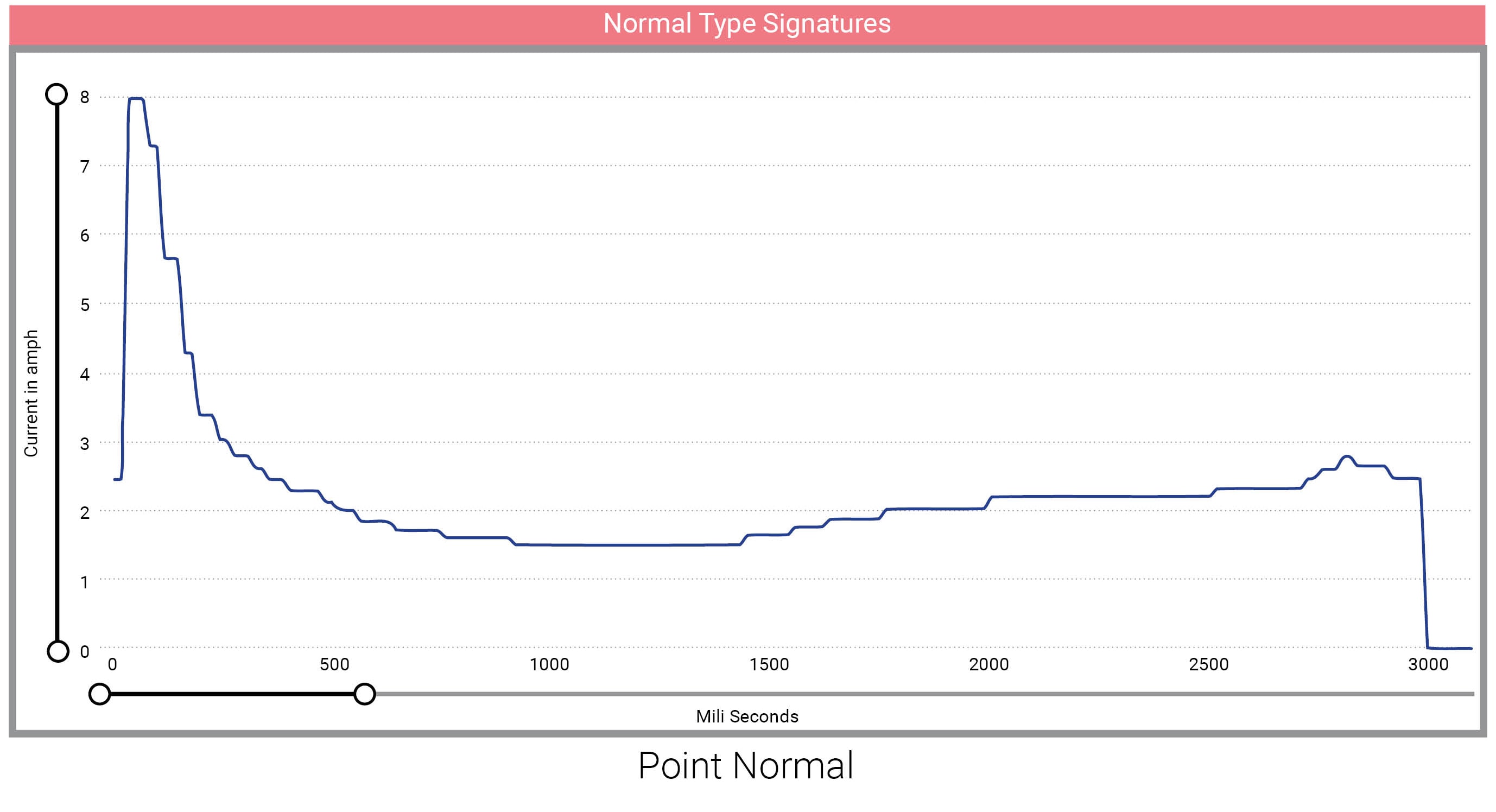

Current signature of point with spring setting device and thick web switches

pthmu-high-thrust-graph

High thrust clamp lock point machine

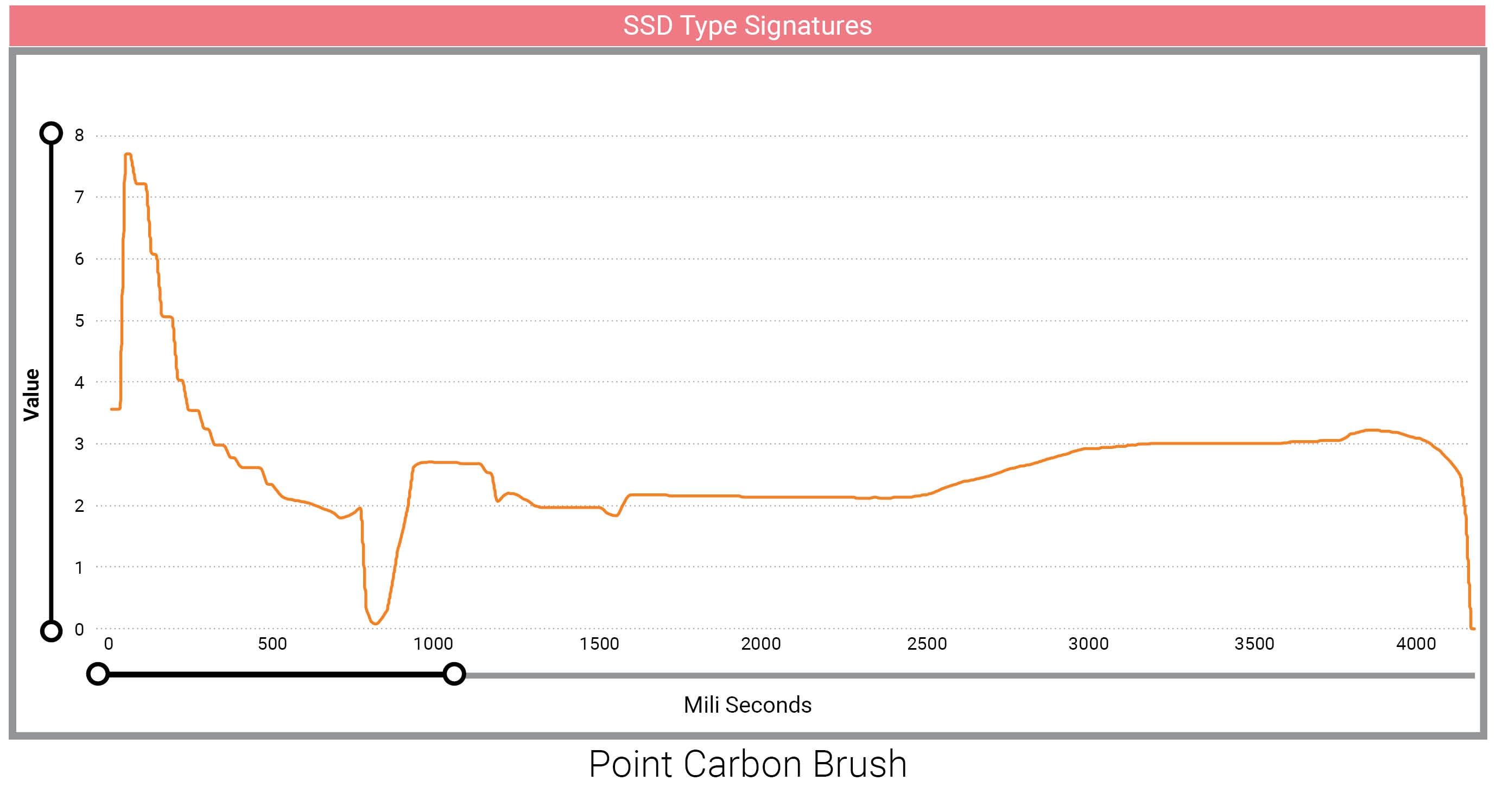

pthmu-carbon-brush-graph

Point Machine Health Monitoring Unit Brochure

Download Broucher
